Kits, PCBs and panels for the 281s QFG DIY synthesizer module.
The PCBs are blue with golden solder pads. Every component is through-hole.
The full kit includes everything you need to build the module. Only high quality components from TDK, KOA-Speer, Nichicon, Xicon, NKK etc. Precision DIP sockets are included as well to make IC replacements easier.
Apart from that you will need basic things like a soldering iron, solder, wires, other tools like screwdrivers and skills 😉
The PCBs are sold unpopulated and need to be stuffed by yourself. Basic electronic skills are needed.
We will not take any responsibility for damages or injuries when building and running the offered PCBs or full sets.

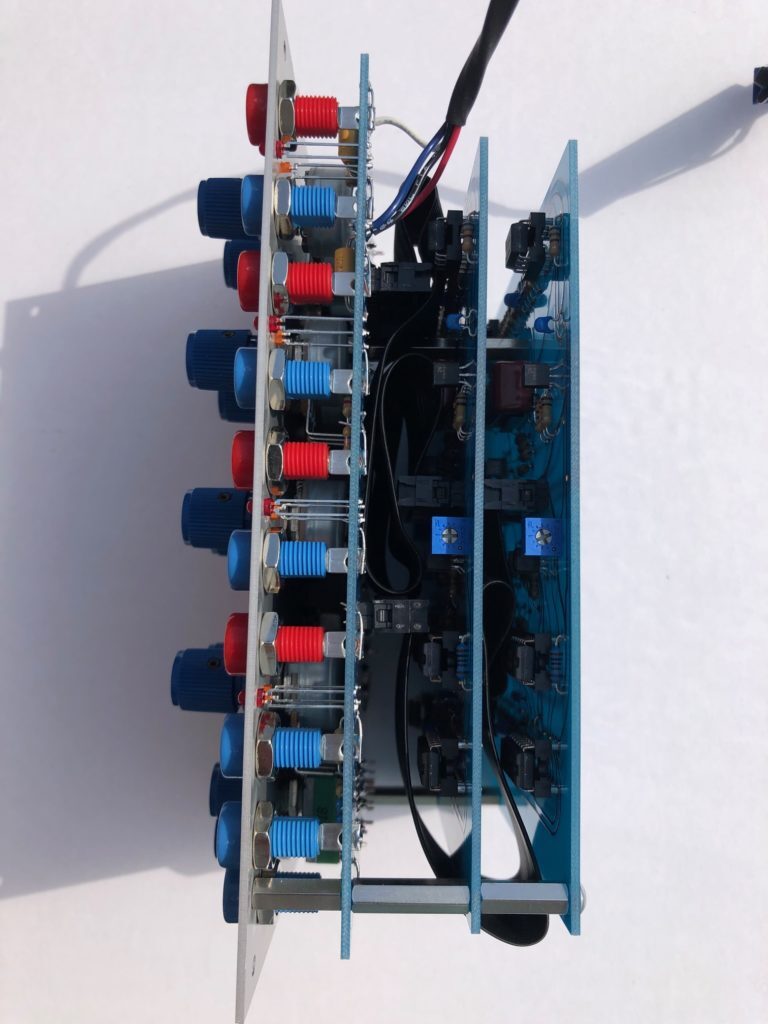

Pictures of a finished module:
Parts from the BOM you might like to add if you don’t buy the full kit – see below:
2x Ribbon cables – 26pin
8x Alpha 16mm pots – 10K lin
2x Alpha 9mm pots – 50k lin
10x additional nuts for Alpha pots
3x 15mm I/I standoffs
3x 15mm I/O standoff
3x 20mm I/O standoffs
Black, red & white switch caps
1x EDAC power connector 10-pin
1x Rogan knob set for 281
