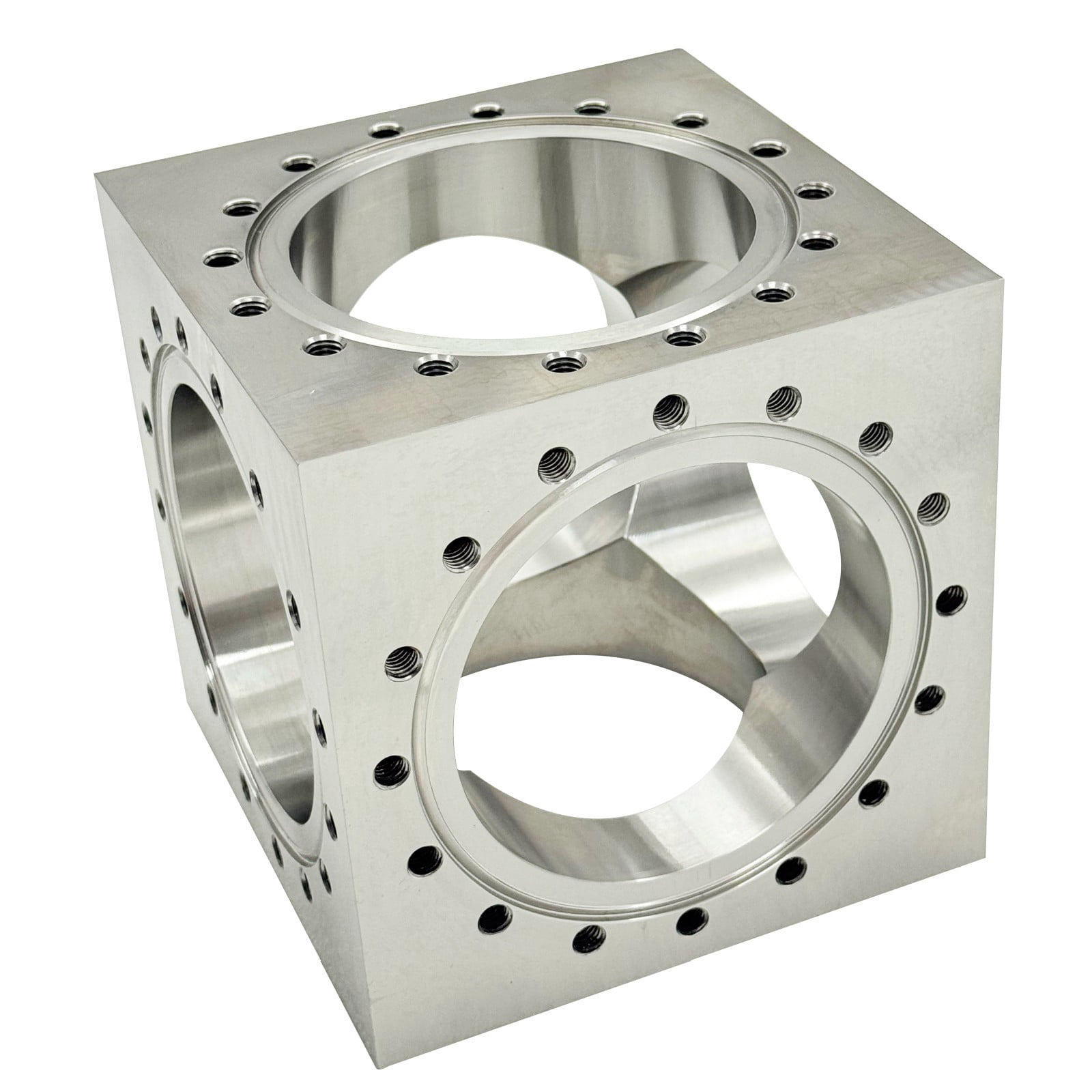

Conflat UHV 6-Way Cube Flange Ultra High Vacuum Chamber 304SS CF100

<p>Introduction:<br>The conflate six-way cube flange is a multifunctional connecting assembly specifically designed for the high vacuum and ultrahigh vacuum system. It is characterized in that integrated connection of multiple vacuum pipelines or facilities is achieved through the six-channel structure, and is suitable for the complex vacuum system layout. The flange has the ultrahigh vacuum compatibility, multi-channel integration capacity and extreme environment tolerance and is an ideal choice for the high-end field.<br><br>Parameters:<br>Material: 304 Stainless Steel<br>Number of Bolt Holes M8 on Each Side: 16<br>Diameter of Main Bore: 101.6MM(4IN)<br>Product Size: 15*15*15CM(5.9*5.9*5.9 Inches)<br>Net Weight: 9.3KG(20.5LBS) <br><br>Items Included: 057271-EnzS<br>Conflat UHV 6-Way Cube Flange Ultra High Vacuum Chamber 304SS CF100</p>

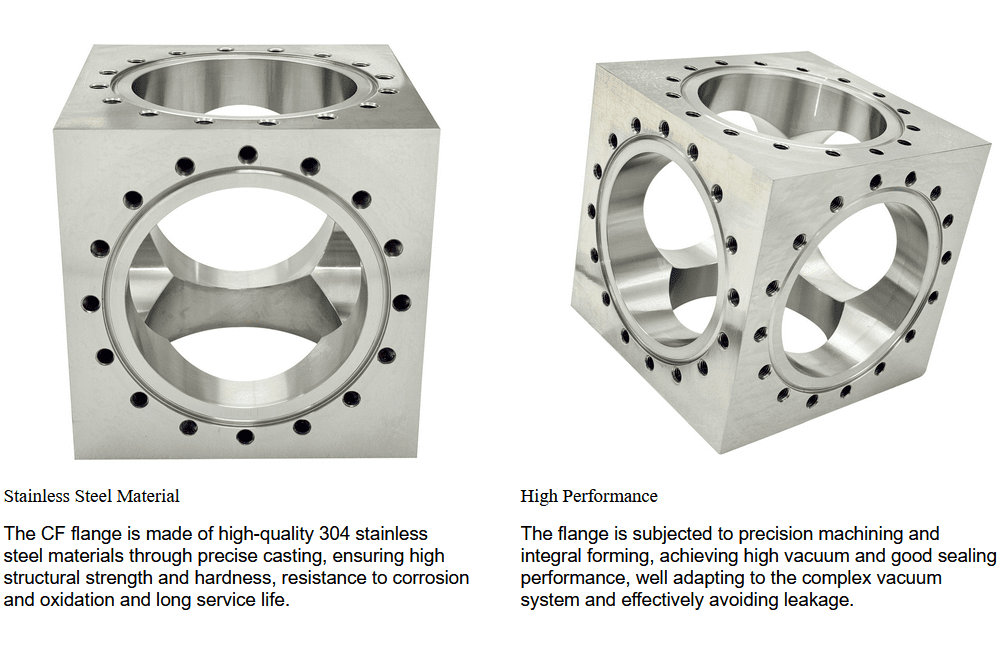

• The CF flange is made of high-quality 304 stainless steel materials through precise casting, ensuring high structural strength and hardness, resistance to corrosion and oxidation and long service life.
• The flange is subjected to precision machining and integral forming, achieving high vacuum and good sealing performance, well adapting to the complex vacuum system and effectively avoiding leakage.

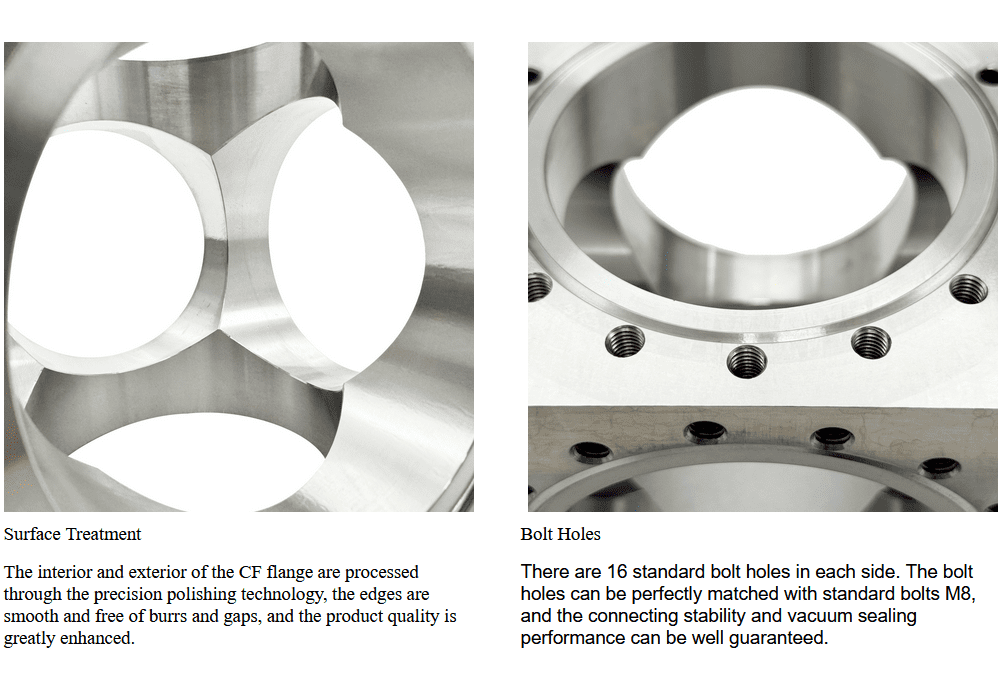

• The interior and exterior of the CF flange are processed through the precision polishing technology, the edges are smooth and free of burrs and gaps, and the product quality is greatly enhanced.
• There are 16 standard bolt holes in each side. The bolt holes can be perfectly matched with standard bolts M8, and the connecting stability and vacuum sealing performance can be well guaranteed.
• The conflate six-way cube flange is a multifunctional connecting assembly specifically designed for the high vacuum and ultrahigh vacuum system. It is characterized in that integrated connection of multiple vacuum pipelines or facilities is achieved through the six-channel structure, and is suitable for the complex vacuum system layout. The flange has the ultrahigh vacuum compatibility, multi-channel integration capacity and extreme environment tolerance and is an ideal choice for the high-end field.
